i2s Digibook
i2s Quartz A1 & A1HD
Quartz A1 & A1 HD deliver unparalleled image fidelity and productivity, built for institutions that demand nothing less than excellence. Capture A1+ formats in stunning...
Quartz A1 & A1 HD deliver unparalleled image fidelity and productivity, built for institutions that demand nothing less than excellence. Capture A1+ formats in stunning detail with glare control, 3D relief enhancement, and precision mechanics.
Contact for Price
-
ISO 19264-1/A, Metamorfoze Full, FADGI 4* compliance (HD model)
-
Tri-linear RGB sensor for superior resolution and color fidelity
-
Glare control system with UV/IR-free lighting
-
3D relief enhancement for embossed or textured materials
-
Up to 600 dpi A1 full scan in 12 seconds
-
Motorized book cradle with 25cm or 40cm support

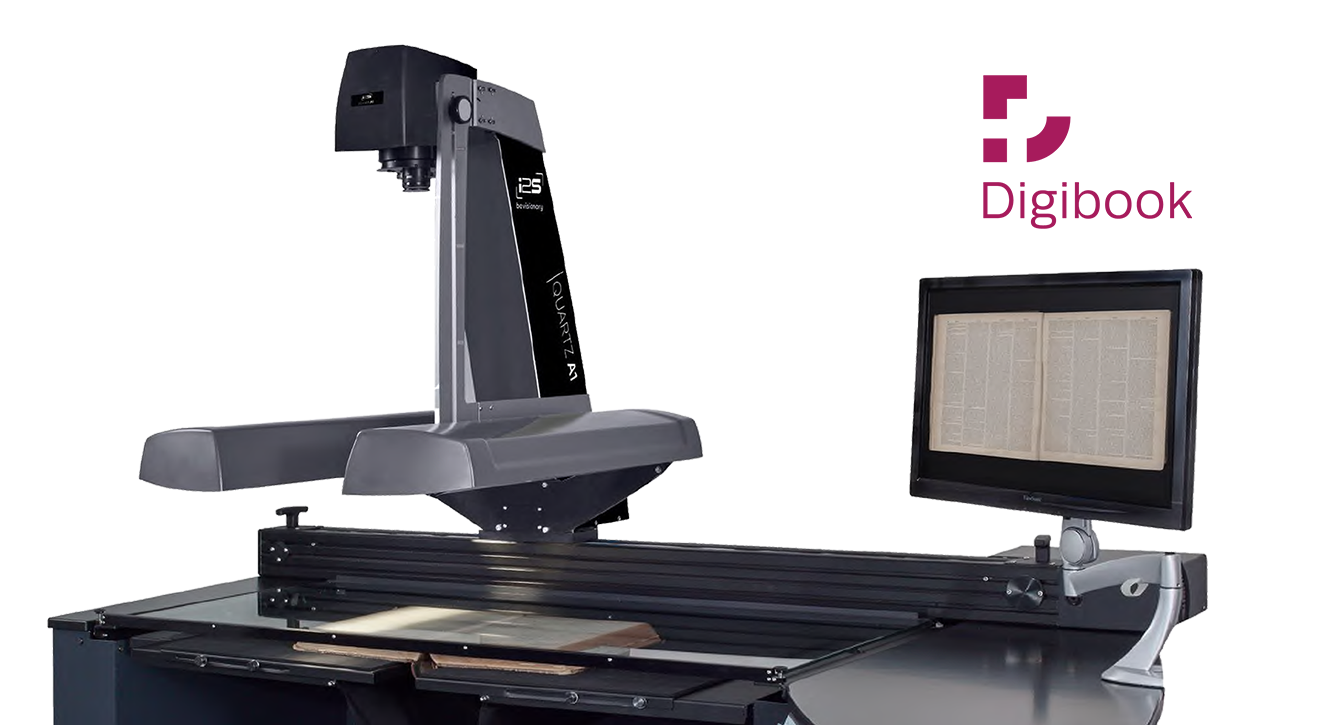

The Quartz A1 & A1 HD are high-performance planetary scanners designed to meet the most demanding standards of digitization in archives, libraries, museums, and cultural institutions. Equipped with a tri-linear RGB sensor, glare-free lighting, and optional motorized book cradles, these scanners deliver exceptional resolution, color accuracy, and productivity with no compromise on document safety.
From reflective medieval illuminations to 3D-embossed manuscripts, the Quartz A1 series handles complex originals with ease. Whether you’re meeting FADGI 4-star or Metamorfoze Full guidelines, or digitizing rare books and oversized documents, Quartz A1 is built to outperform.
Scanner Type:
-
A1+ format planetary scanner
Camera:
-
Tri-linear RGB sensor
-
Automatic Focus (HD model only)
Optical Resolution:
-
400 × 400 dpi (Standard model, A1 format)
-
600 × 600 dpi (HD model, A1 format)
-
Up to 1000 × 1000 dpi (on smaller formats, both models)
Scan Time:
-
6 seconds @ 300 dpi (Standard & HD models)
-
8 seconds @ 400 dpi
-
12 seconds @ 600 dpi (HD model only)
Supported File Formats:
-
TIFF (multi-page)
-
JPEG
-
JPEG2000
-
BMP
-
PDF (multi-page)
-
PNG
-
DNG
Interface Software:
-
Limb Capture (compatible with Windows 10 and 11)
Book Cradle Options:
-
Motorized book cradle: 25 cm or 40 cm
-
Max scanning area:
-
Quartz A1: 1030 × 643 mm (40.5″ × 25.3″)
-
Quartz A1 HD: 1030 × 618 mm (40.5″ × 24.3″)
-
-
Max document thickness:
-
25 cm / 9.84″ or 40 cm / 15.75″
-
-
Max document weight:
-
25 kg / 55.12 lbs or 40 kg / 88.18 lbs
-
Dimensions (L × W × H):
-
1990 mm × 1620 mm × 1840 mm
-
(78.3″ × 63.7″ × 72″)
Weight:
-
With BC25: 310 kg (683.4 lbs)
-
With BC40: 335 kg (738.5 lbs)
Power Requirements:
-
100V – 240V AC
-
50/60 Hz
-
500 VA max
Certifications:
-
CE / FCC Part 15
-
EN 62368-1 (Low voltage safety)
-
EN 55022, EN 55024 (EMC)
-
EN 61000-3-2, EN 61000-3-3
Warranty:
-
1 year on spare parts and software updates
-
Extension available
Digitization without compromise, engineered for the most demanding preservation workflows.
Quartz A1 & A1 HD scanners shine in institutions where every pixel matters and preservation-grade results are mandatory. Designed for large-format and delicate materials, this scanner is the cornerstone for digital replica creation in:
-
Cultural Heritage Projects – Books, manuscripts, maps, and rare prints
-
Archives & Libraries – High-volume digitization with gentle handling
-
Museums & Art Reproduction – Paintings, tablets, and objects with surface relief
-
Government & Registry Offices – Historical legal or civic documentation
-
Academic Research Collections – Oversize engineering drawings, botanical plates
-
Preservation Labs – Where compliance with FADGI, Metamorfoze, and ISO standards is non-negotiable
