i2S Quartz 2A0HD
The ultimate scanner for oversized documents. The combination of very large formats and image quality
The ultimate scanner for oversized documents. The combination of very large formats and image quality
Contact for price
- Versatile LED lighting system
- Ergonomic plate
- Respectful of artworks
- Comply with Metamorfoze and FADGI
Exceptional Quality for Exceptional Formats

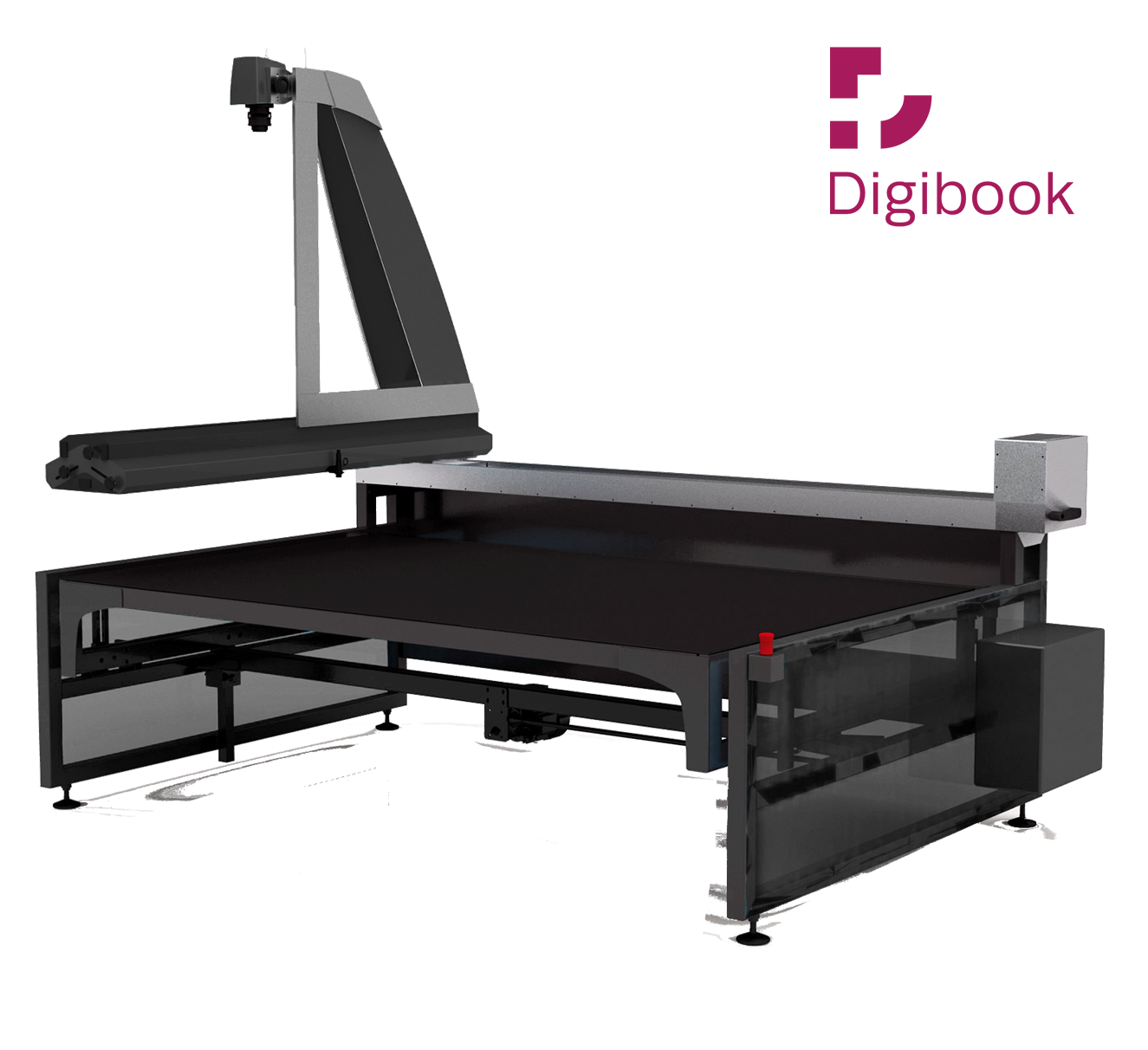

The Quartz HD 2A0 is built for scanning large-format and delicate originals—whether artworks, thick documents, or framed items—up to 2×DIN A0/E, in both color and black & white. Designed with a movable scanning bed for easy handling and precise alignment, it delivers ultra-high-resolution scans at up to 1000 x 1000 dpi optical, all while preserving the integrity of the original.
Part of the renowned Quartz series, this scanner is engineered to meet the strictest standards for image quality—trusted by professionals who demand nothing but the best.
| Category | Specification |
|---|---|
| Type | 2A0 format planetary book scanner |

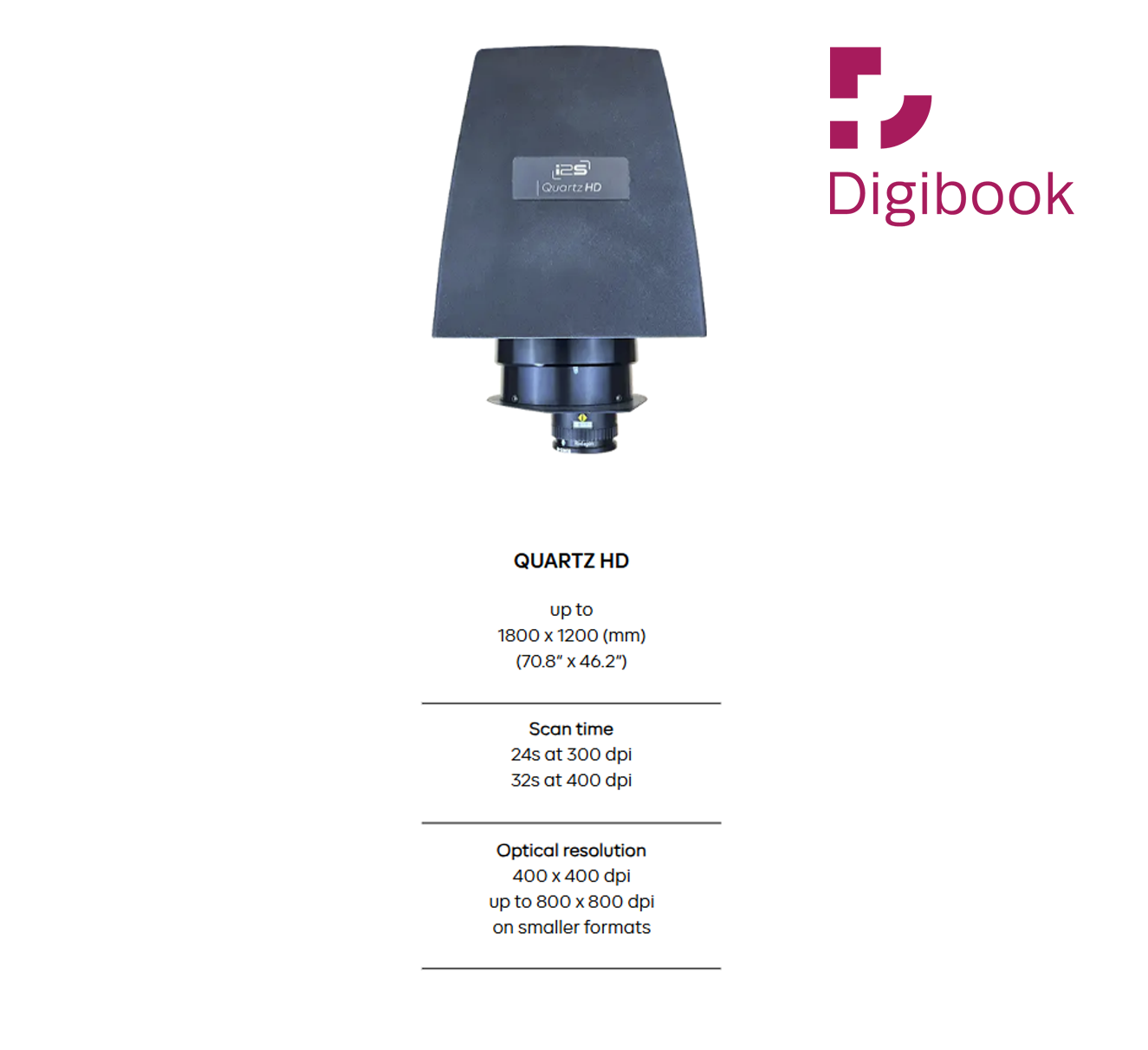

| Camera | Tri-linear sensor with automatic focus |
| Optical Resolution | 400 × 400 dpi on 2A0 format 200 × 200 dpi up to 800 × 800 dpi (smaller formats) |
| Scan Time | – 24 seconds at 300 dpi – 32 seconds at 400 dpi |
| File Formats | TIFF (multipage), JPEG, JPEG2000, BMP, PDF (multipage), PNG, DNG |
| Software | LIMB Capture (compatible with Windows 10, 11) |
| Scanning Surface | Max area: 1800 × 1200 mm (70.9″ × 47.24″) Document thickness: up to 150 mm (5.91″) – Document weight: up to 100 kg (220 lb) |
| Dimensions (L × W × H) | 2650 × 1950 × 2500 mm (104.33″ × 77.8″ × 98.43″) |
| Weight | 927 kg (2039 lbs) |
| Power Requirements | 100V – 240V AC, 50/60 Hz, max 500 VA |
| Warranty | 1-year warranty for spare parts and software updates (extension available) |
| Certifications | CE / FCC Part 15 conformity Electrical safety: EN 62368-1 Radio disturbances: EN 55032, EN 61000-3-2, EN 61000-3-3 Electromagnetic immunity: EN 55024 |
The Quartz HD 2A0 is the go-to scanner when you’re dealing with extra-large, fragile, or untouchable originals. Especially in museums, galleries, and archives. It’s perfect for:
-
Fine art reproduction – Scans oversized paintings, drawings, and prints without touching the surface.
-
Framed or glazed artwork – Thanks to its height sensor and movable plate, it accommodates objects in frames or under glass.
-
Delicate historical documents – Offers non-contact scanning with extreme care for brittle or sensitive materials.
-
Conservation labs and restoration documentation – Captures every detail at high resolution (up to 1000 x 1000 dpi optical) for digital preservation, analysis, and reproduction.
In short: if you have something big, valuable, and irreplaceable—and you can’t afford a scratch or shift, this is your scanner.
