i2S Quartz A0 & A0HD
The Quartz range meets the highest levels of standards and guidelines for image quality.
The Quartz range meets the highest levels of standards and guidelines for image quality.
Contact for Price
- 3D Technology
- Relief enhancement
- Glare control system
- Quartz and Quartz HD
- Comply with Metamorfoze, FADGI and ISO 19264-1
Scanners with line sensors
The combination of image quality and speed

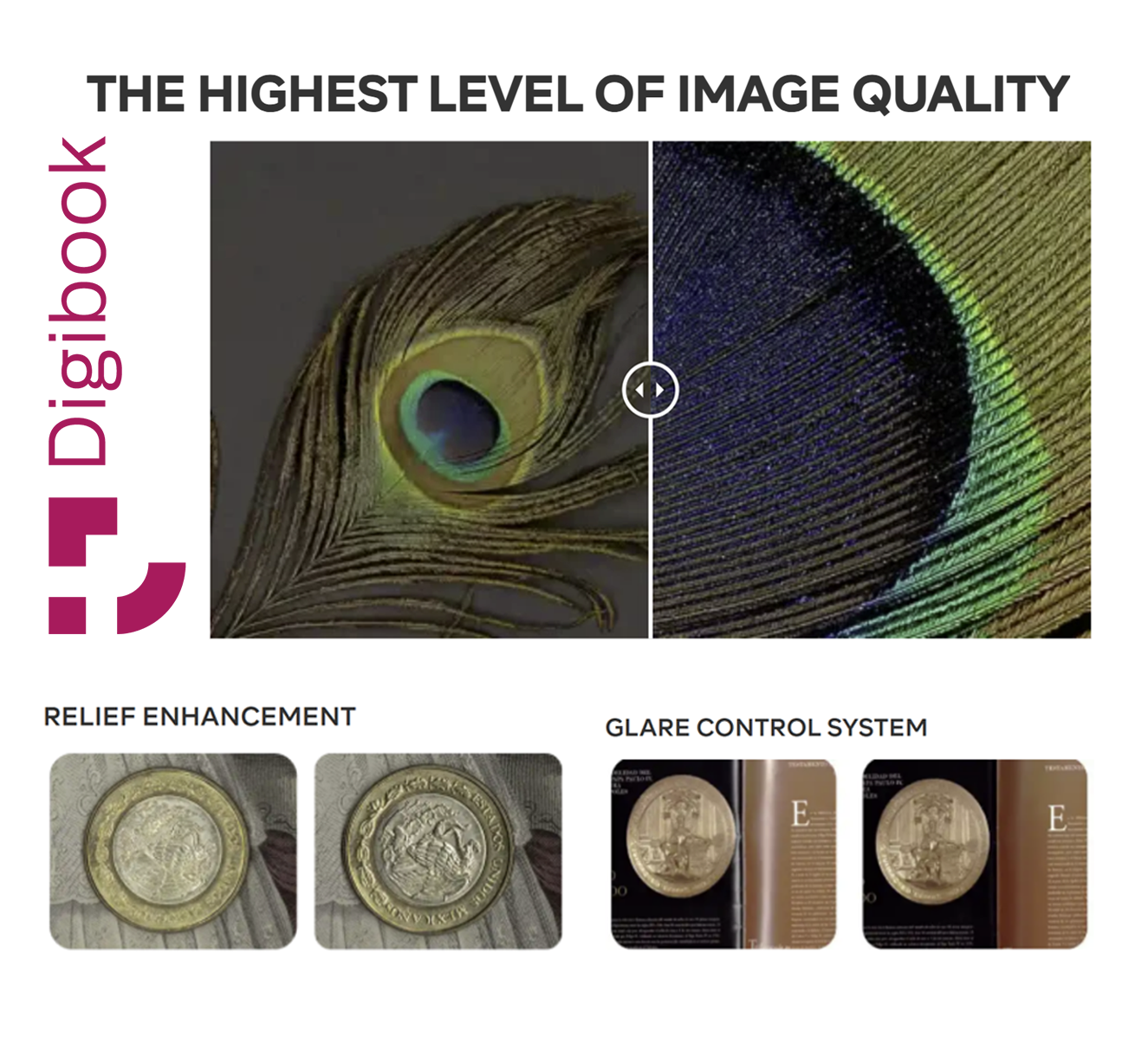

The Quartz A0 and Quartz A0 HD offer innovative features like the relief enhancement and glare controle system. Thanks to optical and lighting innovation, relief enhancement features enables perfect reproduction of works of art sush as paintings, drawings and antique works of art; glare control feature enables scanning any glossy documents even blister poched document.
The Quartz range meets the highest levels of standards and guidelines for image quality.
Type:

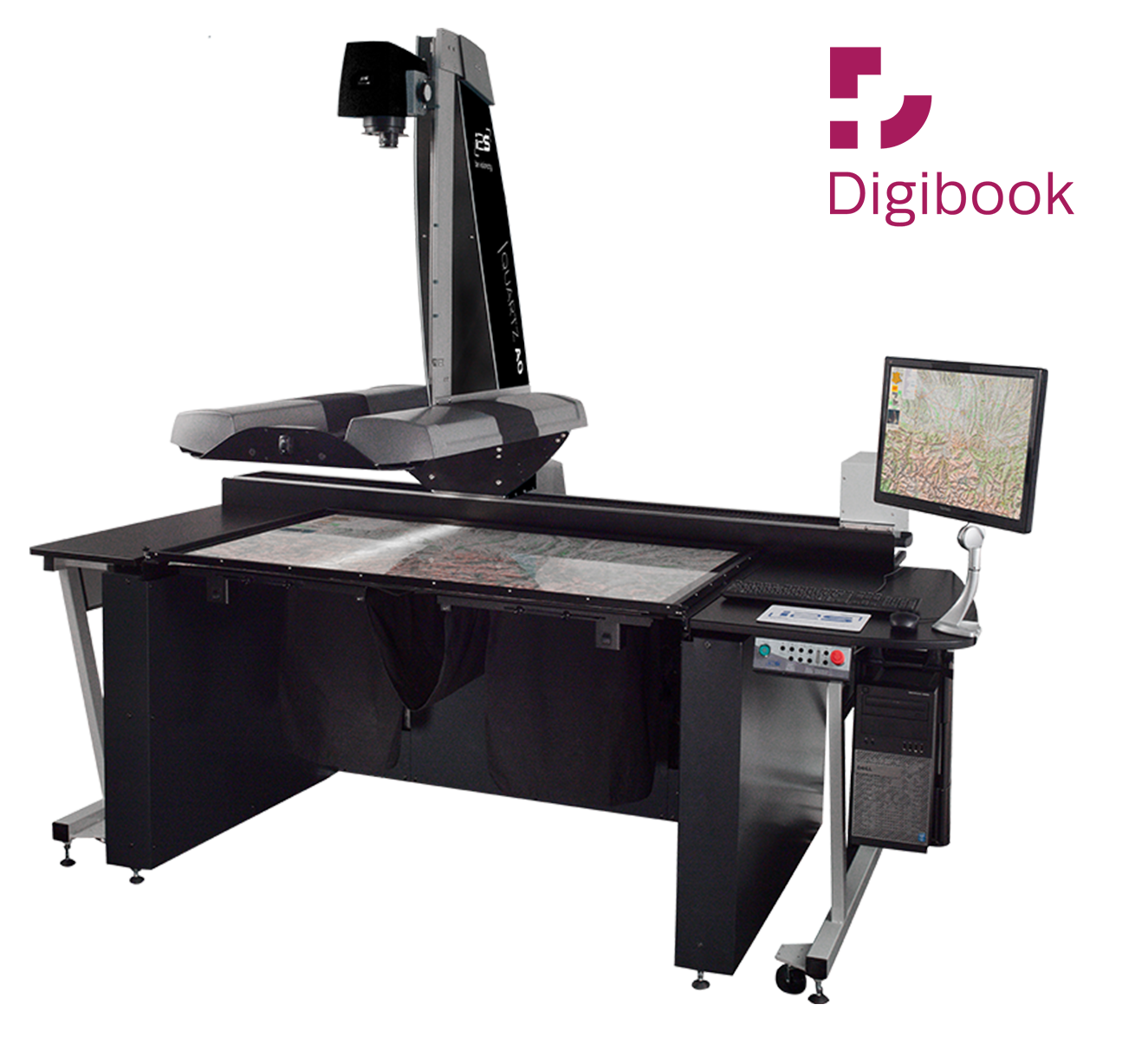

A0+ format planetary book scanner

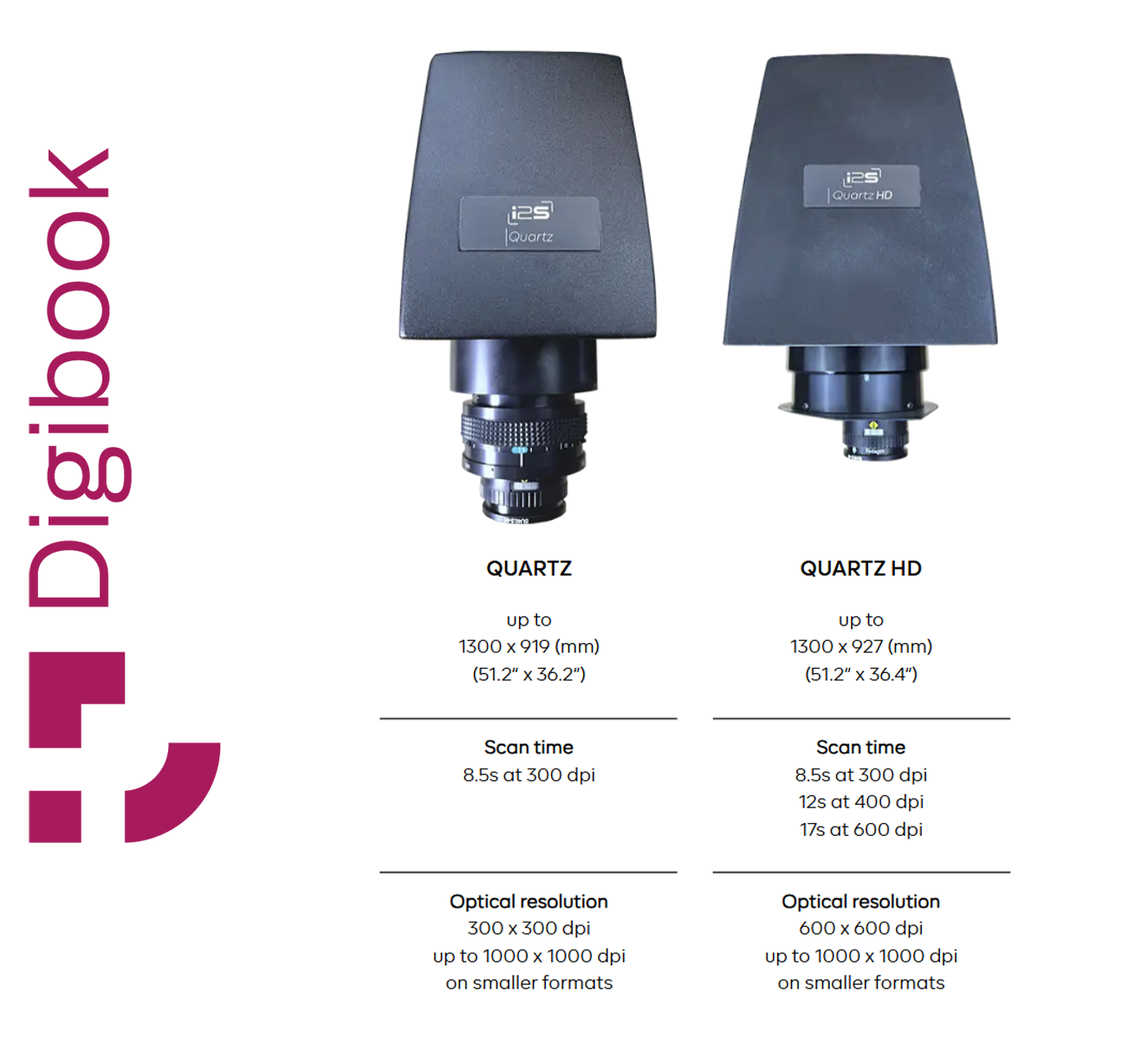

Camera:
Tri-linear sensor with automatic focus (HD model)
Optical Resolution:
300 × 300 dpi on A0 format (standard model)
600 × 600 dpi on A0 format (HD model)
Up to 1000 × 1000 dpi on smaller formats (standard & HD models)
Scan Time:
8.5 sec at 300 dpi (standard model)
8.5 sec at 300 dpi (HD model)
12 sec at 400 dpi (HD model)
17 sec at 600 dpi (HD model)
File Formats:
TIFF (multipage), JPEG, JPEG2000, BMP, PNG, PDF (multipage), DNG
Software:
LIMB Capture (compatible with Windows 10, 11)
Book Cradle:
Motorized cradle, supports books up to 40 cm thick
Max scanning area (with glass): 1250 × 850 mm (49.2″ × 33.5″)
Max document thickness: 400 mm (15.7″)
Max document weight: 40 kg (88 lb)
Dimensions (L × W × H):
2530 × 1710 × 2350 mm (99.6″ × 67.3″ × 92.5″)
Weight:
335 kg (738.5 lbs) with BC40
Power Requirements:
100V – 240V AC, 50/60 Hz, max 500 VA
Warranty:
1 year on spare parts and software updates (extension available)
Certifications:
CE / FCC Part 15 conformity
Electrical safety: EN 62368-1
Radio interference: EN 55022, EN 61000-3-2, EN 61000-3-3
Electromagnetic immunity: EN 55024
Designed for museums, archives, and cultural institutions, the Quartz A0 series excels at digitizing large, fragile, or glossy originals—such as paintings, maps, drawings, and historical documents.
Its advanced 3D imaging, glare control, and non-contact scanning make it ideal for preservation-grade digitization where surface detail and authenticity matter most.
