i2s Digibook
i2S V-Shape A1 & A2
A V-shaped scanner designed for fragile books. Gentle on bindings, precise in image quality, and ideal for heritage preservation.
A V-shaped scanner designed for fragile books. Gentle on bindings, precise in image quality, and ideal for heritage preservation.
Contact for price
- 2 high quality cameras
- Motorized V-glass
(120° opening) (up/down) - 2 LED light
- BoostPic (EAGLE camera)
- BoostPic & True color (Rock camera)
- Comply with ISO 19264-1/B, Metamorfoze Light and FADGI 3* (EAGLE and ROCK cameras).
Gentle Handling. Exceptional Results.

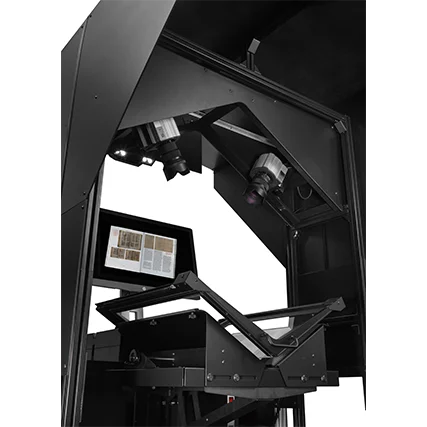

The CopiBook V-Shape is purpose-built for digitizing fragile and bound documents that cannot be fully opened. Equipped with a V-shaped book cradle and matching 120° glass pane, it ensures maximum protection while delivering high-resolution, distortion-free scans.
The adjustable glass pressure allows careful handling of delicate materials, while the ultra-thin glass (just 2 mm) fits snugly into the book gutter. Capturing every detail without damaging the spine or pages.
Ideal for archives, rare book rooms, and conservation settings, the CopiBook V-Shape meets the strictest image quality standards, making it a trusted choice for heritage preservation.
| Category | Specification |
|---|---|
| Type | 2×A3 and 2×A2 format planetary book scanner |

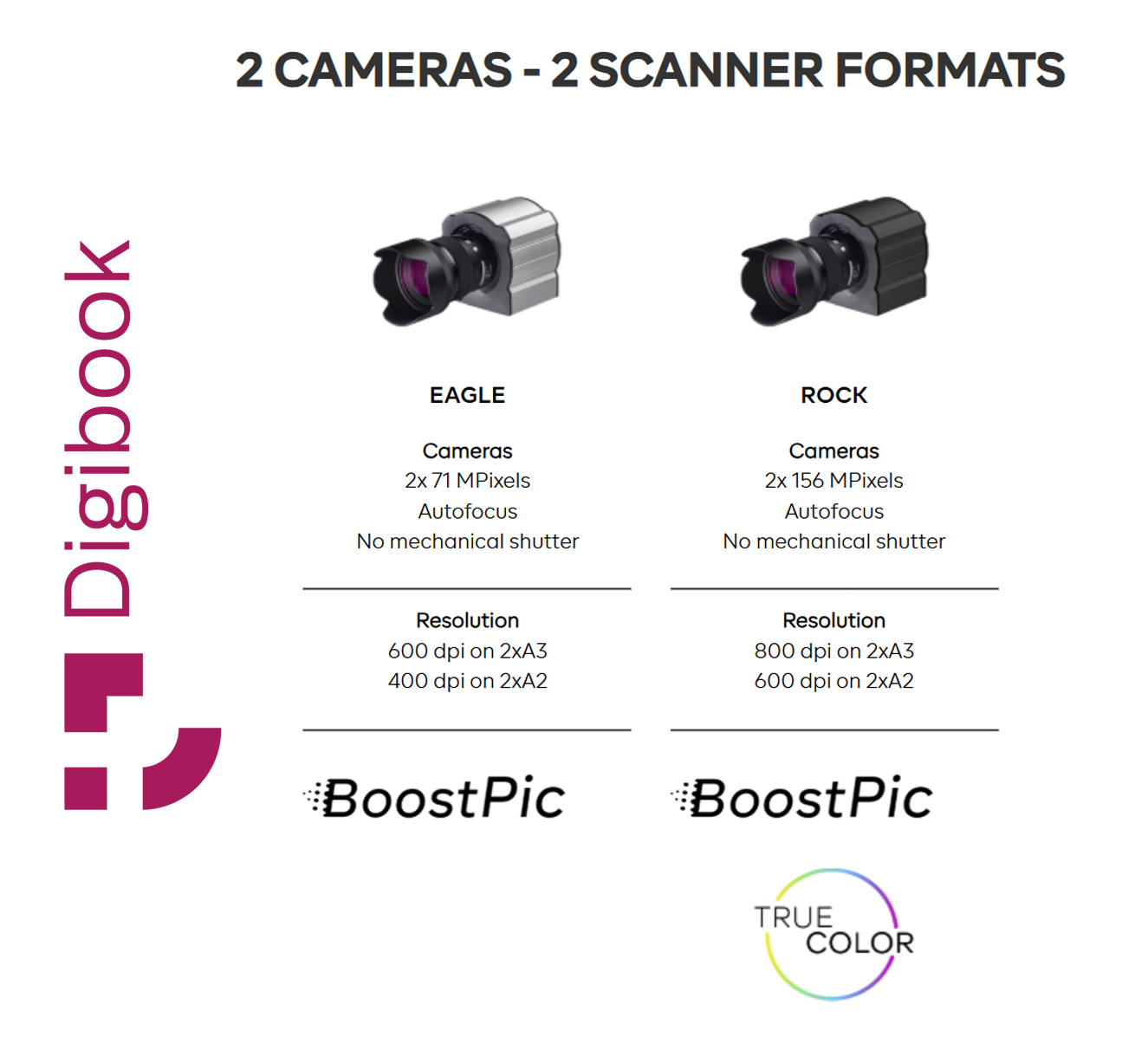

| Camera | EAGLE camera with 71 MP matrix sensor ROCK camera with 156 MP matrix sensor Autofocus, no mechanical shutter Supports: Color, Grayscale, Black & White |
| Optical Resolution | EAGLE: 400 × 400 dpi (2×A2) 600 × 600 dpi (2×A3) ROCK: 600 × 600 dpi (2×A2) 800 × 800 dpi (2×A3) |
| Scan Time | < 1 second at 600 dpi (color) |
| Cycle Time | < 9 seconds at 600 dpi (color) |
| File Formats | TIFF, Multi-page TIFF, JPEG, JPEG2000, BMP, PNG, PDF, Multi-page PDF, DNG |
| Software | LIMB Capture (compatible with Windows 10, 11, and higher versions) |
| Dimensions (L × W × H) | 2000 × 1350 × 2100 mm (78.7″ × 53.2″ × 82.7″) |
| Weight | 53 kg (116.9 lb) |
| Power Requirements | 100V – 240V AC, 50/60 Hz |
| Warranty | 1-year warranty on spare parts and software updates (extendable) |
| Certifications | CE / FCC Part 15 Electrical Safety: EN 62368-1 Radio Interference: EN 55032, EN 61000-3-2, EN 61000-3-3 Electromagnetic Immunity: EN 55024 |
The CopiBook V-Shape is the ideal solution for digitizing fragile, tightly bound, or valuable books that cannot be fully opened. Its 110°/120° V-shaped cradle ensures gentle handling without sacrificing image quality and making it the trusted choice for:
-
Archives & Special Collections – Digitize rare manuscripts, hand-bound volumes, and historical documents with care.
-
Libraries & Reading Rooms – Scan heritage books for public access without compromising their physical condition.
-
Conservation Labs – Create precise digital records for condition tracking, restoration, and digital preservation.
-
Academic & Research Institutions – Safely digitize important reference materials for digital libraries and scholarly access.
Designed to protect while it captures, the CopiBook V-Shape balances document safety and scanning precision in one elegant system.
